Structural Features

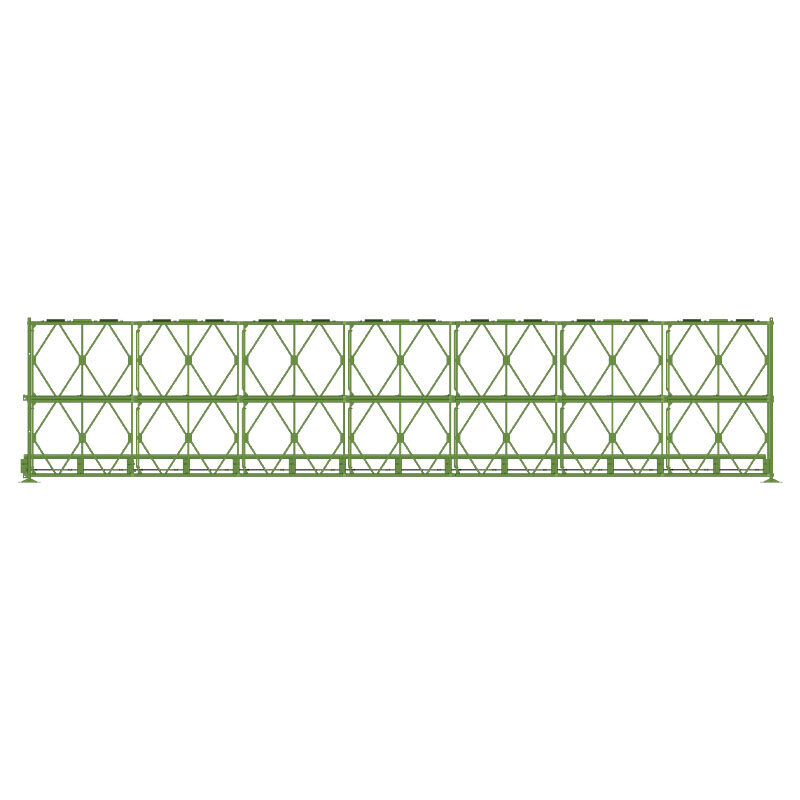

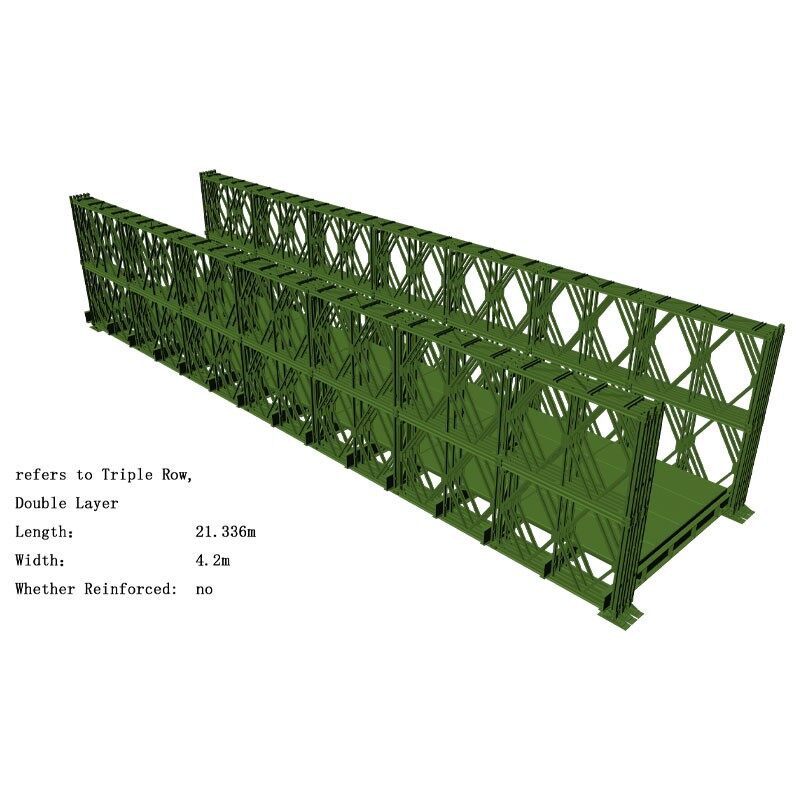

- Basic Structure: Primarily composed of Bailey panels, crossbeams, and bridge decks. The Bailey panel is the basic unit, a truss structure connected by pins or bolts. Each Bailey panel typically measures 3048mm × 2134mm and can be combined to form bridges of varying spans and load-bearing capacities.
- Connection Method: Utilizes pin connections. The weight of components is designed to be manageable by hand, allowing for quick and easy connection.
Product Advantages
- Convenient construction: Standardized steel structural components allow for rapid assembly and disassembly, shortening the construction period.
- High adaptability: Flexible design and combination are possible to suit different river environmental conditions.
- Reusable: Removal and reconstruction of components effectively reduces operating costs.
Advantages compared to other river-crossing options
|
Comparison of Solutions |
Bailey Bridge Advantages, |
Differences in Applicable Scenarios |
|
Floating bridges |
higher load-bearing capacity and better vehicle stability |
They are suitable for deep water and areas without navigation, but their load-bearing capacity is limited. |
|
Pontoon bridge |
Faster setup, no underwater foundation required |
Pontoon bridges are mainly used for military purposes, with limited civilian use. |
|
temporary concrete bridge |
Quick assembly and reusable |
Temporary concrete bridges require on-site pouring, which takes a long time. |
|
Detour options |
Cross directly, shorten the travel distance |
Taking a detour could add tens of kilometers to the journey. |
Application Scenarios
- Emergency Relief: Primarily used for post-disaster reconstruction; transportation infrastructure can be quickly restored.
- Military Use: Troop mobilization and rapid river crossing.
- Temporary Construction Bridges: Used as temporary river crossings during water conservancy projects and road construction.
- Temporary Alternatives: Used as temporary passages during the reconstruction of dangerous bridges.
- Remote Areas: In mountainous and rural areas, used as transitional facilities before permanent bridges are built.
If you need more information about the river-crossing bridge or want to get a quote, please feel free to contact me. I will provide you with professional service!
