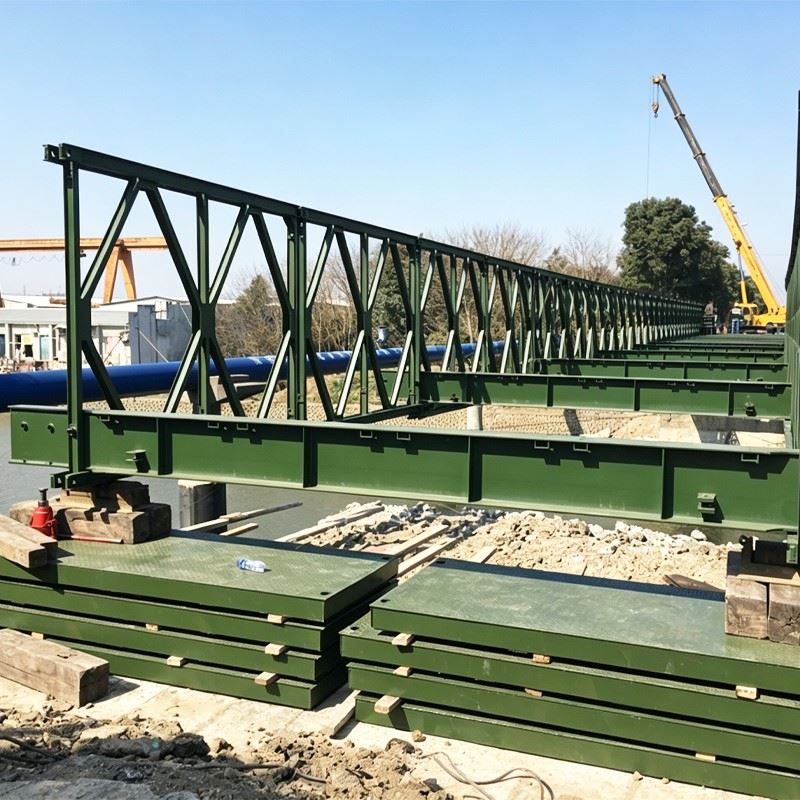

Reinforced Chord Bailey Bridge For River Crossing

We get asked for this one a lot when a standard single-span Bailey just falls short. The reinforced chord bailey bridge is our answer when you need more capacity than a basic panel can give, but a full double-storey system is overkill for the site. The idea is simple: we bolt supplementary chord members onto the top and bottom of the existing truss so it carries a bigger bending load, without adding a whole second storey of panels. You keep the fast erection and easy recovery that made the Bailey concept popular in the first place. That makes it a favourite with contractors, military engineers and disaster-response teams who need extra rating on a tight schedule. It sits in the gap between a light temporary crossing and a heavy permanent one.

Reinforcing chords raise bending strength without doubling the number of truss rows. The reinforced chord bailey bridge makes this practical.

Works with standard Bailey panel hardware, pins and joint fittings.

Goes together quickly with ordinary hand tools and a small crew.

Reusable and easy to relocate across multiple project cycles.

Steel or timber deck options to suit the job.

Fine for both permanent and semi-permanent deployments.

Here's what actually happens when a truck rolls across. The deck load runs into the cross beams and stringers, then down into the vertical panel posts, where it turns into axial push and pull in the chords and diagonals. The trick with this system is the added chord: we bolt it flush against the original top or bottom chord so the two sections act together and share the bending couple. In plain terms, that lifts the moment of inertia and lets the mid-span section take more tension and compression than the panel alone ever could. End posts, transoms and sway bracing keep everything from twisting or buckling sideways. On site we normally erect by cantilever launching - panels go on at the back while the nose reaches out over the gap, then the finished span is lowered onto the bearings at the far abutment. The reinforced chord bailey bridge is built for this.

You'll see this bridge used for permanent road-crossing replacements, temporary detours during bridge rehabilitation, and access over rivers and flood channels. It's also a common choice for military load-class crossings and for construction-site haul roads where the loading is beyond what a standard single-truss Bailey span can handle. After a flood or earthquake, relief teams reach for it when they need extra span or capacity and there's no time to wait for a custom structure. The reinforced chord bailey bridge is built for this.
