What It Is

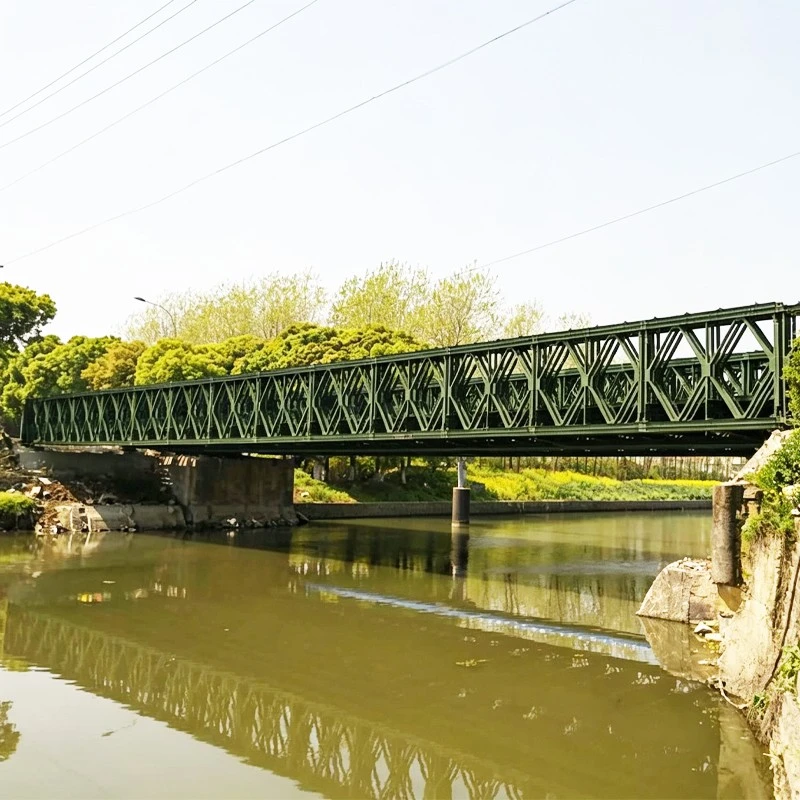

An anti-corrosion bailey bridge for coastal environments is built for salt spray and high humidity. A plain steel bridge on the coast lasts three to five years. Rust starts at the pin holes. Then it spreads to the chords. Our coastal anti-corrosion bailey bridge puts protection in the coating and in the structural details. Jiangsu Jiuzhou Bridge Engineering Co., Ltd. works to marine-grade standards from steel selection to coating.
Where Corrosion Comes From
Coastal corrosion has more than one source. Salt spray settles on steel surfaces. Chloride ions break through the oxide film. Tidal cycles cause wet-dry alternation. That speeds up electrochemical corrosion. UV light ages and cracks coatings. Pin holes and lug contact faces trap water and salt. They rust first. Bolted connections lose coating when bumped. That starts a corrosion cell. Anti-corrosion for a coastal bailey bridge is not just a surface job. It targets each weak point.
Coating System
The coating runs in three layers. First, hot-dip galvanizing. Components are dipped in molten zinc at 445–455°C. This forms an 80–120μm zinc-iron alloy layer. In marine environments it provides around 25 years of protection. Second, an epoxy primer. It seals the galvanized layer. Third, a polyurethane topcoat. It resists UV and salt spray. The three layers form a composite system. For the harshest zones, pins and bolts can get a separate Dacromet treatment. Thin coating, strong salt resistance.
Where It Goes
A coastal anti-corrosion bailey bridge serves three main situations. First, island and shoreline projects. Jetty construction trestles, temporary sea-crossing access - constant salt spray and sea wind. Second, coastal projects in Southeast Asia and South America. High heat, high humidity. Traditional steel bridges start rusting in two to three years. Anti-corrosion bailey bridges are a necessity. Third, mining haul roads near the coast. Heavy traffic plus salt exposure. The bridge must carry load and resist corrosion at the same time. For export projects in these regions, we coat to C5-M by default.
Contact
Jiangsu Jiuzhou Bridge Engineering Co., Ltd. Bailey panels, pins, transom clamps, and chord reinforcements - all made in-house. Coastal anti-corrosion coated to ISO 12944 C5-M. Salt spray reports issued per batch. For coastal projects, send your span, load, and environment description.
