Product Introduction

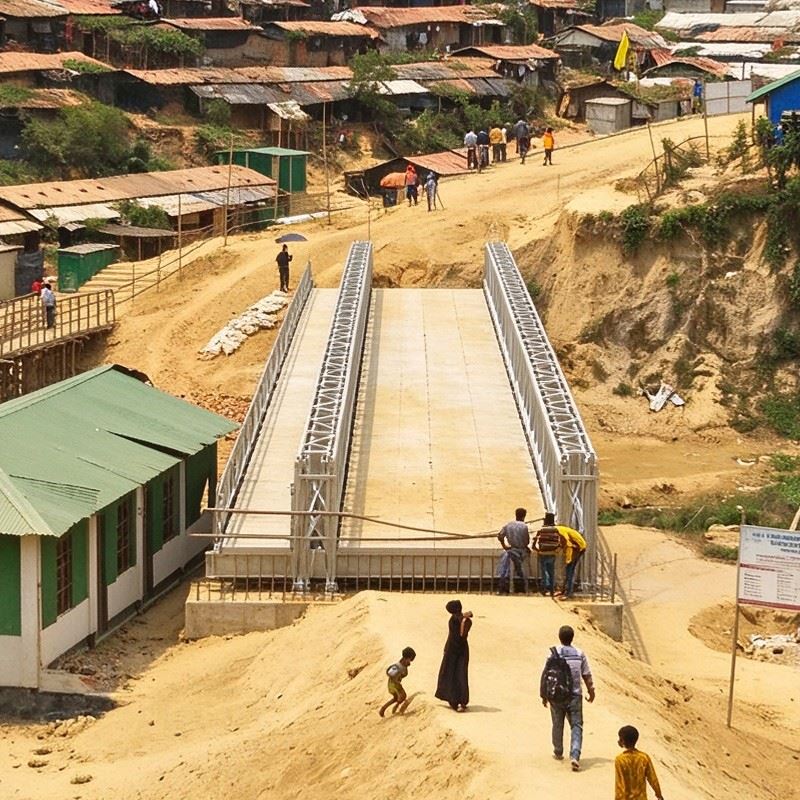

When a cofferdam, dam, weir or river-training job is under way, the work often happens below while traffic still has to cross above. The bailey truss bridge for river diversion construction is the temporary or semi-permanent crossing that lets construction vehicles, plant and the workforce move across the diverted channel while the permanent structure is built underneath.
These bridges sit in flood flows, debris and dewatering surges, so we design in reliable abutments, scour protection and a deck that can be opened quickly if debris has to pass. It also has to survive wet seasons, which rules out any light-duty temporary crossing. Once the permanent river crossing is done, we take the Bailey bridge down and reuse the panels on the next job.
Features
Designed for construction-traffic loads and fatigue. The bailey truss bridge for river diversion construction makes this practical.
reliable abutments with scour protection.
Deck can be opened for debris passage during floods.
Suitable for wet-season service.
Modular, so it is removed and reused after construction.
Compatible with cantilever-launch erection over the live channel.
Working Principle
Like any Bailey truss this one carries load through its chords and diagonals, but the detail that defines this product is how it goes over a live, flowing channel. We normally erect it by cantilever launch. Panels are built out from one bank and pushed across the gap on a launching nose, so no falsework is dropped into the diverted channel that the cofferdam works already occupy. The bailey truss bridge for river diversion construction is built for this.
The abutments are built to take scour during high flows, and rip-rap protects the approaches from being washed out. The real-world test is a flood event. If debris threatens to lodge against the structure, we can pull selected deck panels and a panel bay to let the flow through, then reinstate the bridge afterwards. After every high-water event we inspect it before letting traffic back on.
Applications
Typical installations are crossings over diverted river channels during dam, weir, sluice and flood-control projects, access bridges across cofferdam cells, and construction crossings for bridge and culvert replacement in rivers. They also serve river training and bank stabilization work, and can stay in as a permanent rural road link if the owner decides to keep it after construction. The bailey truss bridge for river diversion construction is built for this.
